How can I hook up my Standard Celestron 9.25 inch to a Canon mirrorless camera?


jakimo

Question

Hi,

I just bought a Canon EOS R5 camera, and I want to hook it up with my brand new Celestron 9,25 (regular, NOT Edge) avx. What kind of adapter do I need for that purpose? The guys at Telescope Adapters.com want to sell me this set up :

https://www.telescopeadapters.com/img/cms/TRUE-2_DIAGRAM_700W.jpg

will it work? Does my SCT tube accept 2 inch eyepieces/accessories???

Please help!

Best regards,

Jacques Goguen

Link to post
Share on other sites
  • Answers 3
  • Created
  • Last Reply

Top Posters For This Question

Popular Days

Top Posters For This Question

Popular Posts

One of the reasons that the Seller at TelescopeAccessories.com is suggesting the "True 2" Adapter is because your R5 is a Full-Frame Sensor. The diagonal Size of a Full-Frame Sensor is 43mm.  The

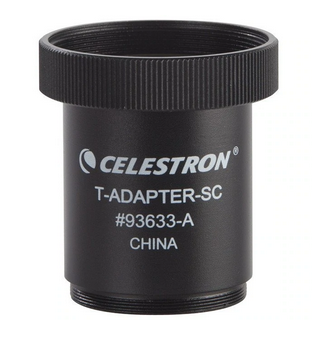

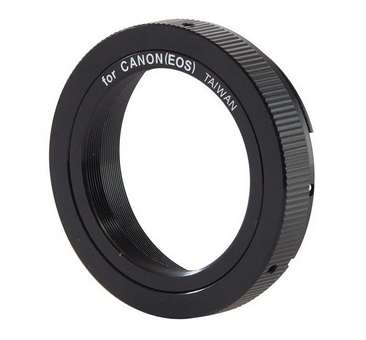

Jacques, I believe that all you need are a T-adapter and a Canon T-ring The T-adapter attaches to the visual back of the C 9.25 optical tube, the T-ring screws onto the end of the T-ada

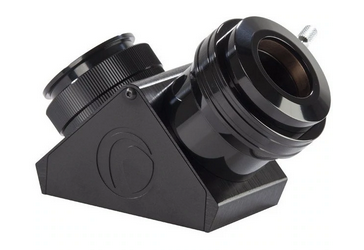

Jacque, I re-read your post and saw that you had also asked about using 2" eyepieces. In order to use your SCT with 2" eyepieces you need to purchase a 2" diagonal to replace the 1.25" diago

Posted Images

3 answers to this question

Recommended Posts

  • 0

One of the reasons that the Seller at TelescopeAccessories.com is suggesting the "True 2" Adapter is because your R5 is a Full-Frame Sensor.

The diagonal Size of a Full-Frame Sensor is 43mm.  The Clear/Inside Aperture of a standard T-Adapter is only about 36-40mm, meaning that you will experience a good bit of Vignetting in the Corners of your Images.  The Clear/Inside Aperture of a "True 2 Ultra-wide Adapter" is almost 48mm - no Vignetting.  However, with the "True 2", you will need to add a 2" SCT Visual Back such as:  https://www.bhphotovideo.com/c/product/1512119-REG/celestron_93661_sct_to_2_visual.html  or  https://agenaastro.com/blue-fireball-2-sct-visual-back-sct-2-adapter.html (I suggest the latter as it has a better 2-thumbscrew Brass Compression Ring).

Link to post
Share on other sites
